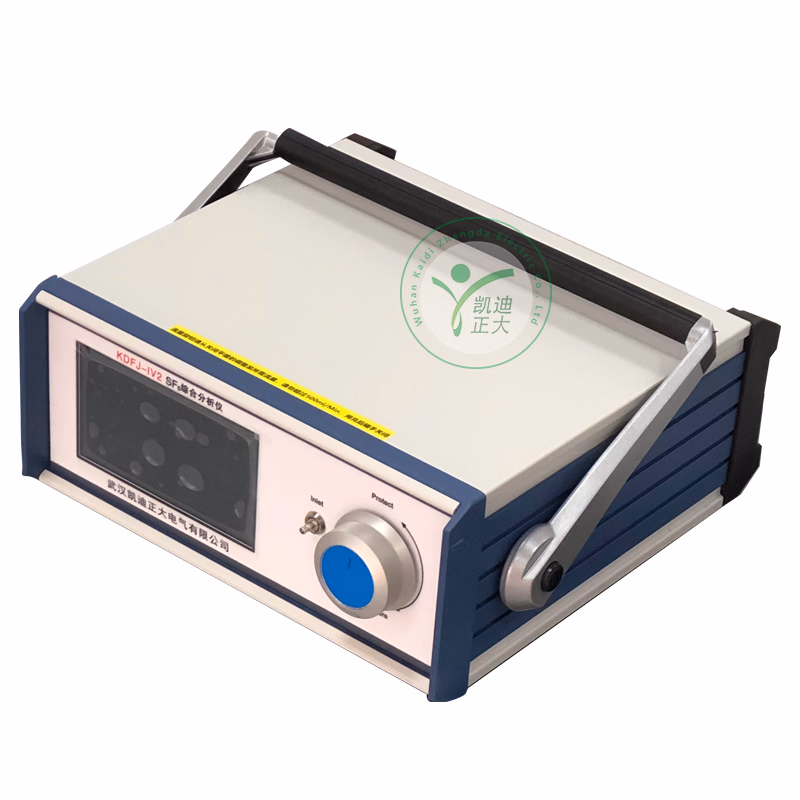

The KDFJ-IV is a comprehensive SF6 gas analyzer designed to combine several measurements in one portable, digitally displayed instrument.
It measures SF6 dew point, purity, and selected decomposition products, making it suitable for laboratory testing and field inspection where these parameters must be checked with a single unit. Supported measurement capabilities The dew-point measuring range is -80°C to +20°C, with stated accuracy of ±0.5°C.
When the dew-point temperature is below 0°C, the sensor output represents frost point. Stated response times are 5 seconds to reach 63% and 45 seconds to reach 90% when moving from -80°C to +20°C. In the reverse direction, from +20°C to -80°C, the stated response times are 10 seconds to 63% and 240 seconds to 90%.
For SF6 decomposition testing, the instrument provides an H2S range of 0–100 μL/L, an SO2 range of either 0–100 μL/L or 0–2000 μL/L, and a CO range of 0–1000 μL/L. For H2S and SO2 readings at or below 10 μL/L, the stated error is no more than ±0.2 μL/L;above 10 μL/L, it is no more than ±3%.
SF6 purity is measured over a 0–100% weight-ratio range. The stated purity accuracy is no more than ±0.2%, with a measurement time of under two minutes. The analyzer uses manual control, an AC 220 V power source, and a digital display.
Its stated instrument weight is 7.3 kg, and the listed specification is 300 × 350 × 100 mm.
Procurement questions to confirm Before ordering, buyers should confirm which SO2 range is supplied, the exact sensor configuration, included sampling components and accessories, power-cord and plug configuration, calibration documentation, and whether calibration is traceable to a required standard.
Also verify operating and storage conditions, gas-flow requirements, warm-up time, data storage or export functions, replacement-sensor availability, and the maintenance schedule.
Confirm whether the listed dimensions refer to the instrument itself and request the final packing list, because separate package dimensions and gross weight are stated.
If a warranty or customized configuration is required, obtain the applicable scope, exclusions, deliverables, and acceptance criteria in the purchase documentation.
